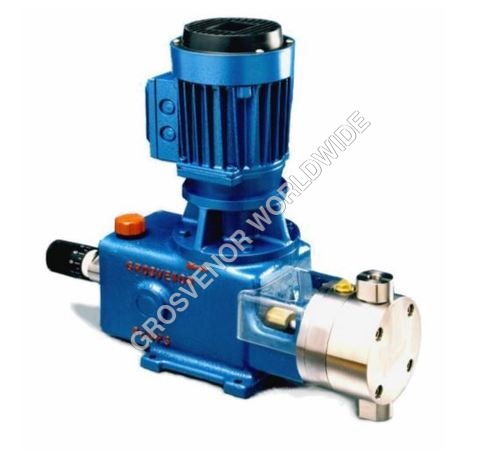

Variflow Dosing Metering Diaphragm Pumps - Z Series

Next > >

<< Previous

Send Inquiry

Product Code : GP-16

Brand Name : GROSVENOR PUMPS

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces,

Price Range
5000.00 - 500000.00 INR

Product Specifications

Material
Metal
Power
Electric

Pressure
High Pressure
Usage
Cosmetics, Paper Printer, Boat, Automobile, Food, Water Well, Oil Well, Air Pump, Water

Application
Submersible, Sewage, Metering, Maritime, Fire, Cryogenic

Product Description

Description

The Variflow Dosing Metering Diaphragm Pumps - Z Series is from 0 - 14000 LPH giving a maximum pressure of 10 Bar depending upon the flow rate.These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled.

These Pumps are available in Single Diaphragm, Double Diaphragm, Sandwich Type with Rupture Detection with Multi Heads upto 3 heads.

Technical Details

CAPACITY	:	MAX - 14000 LPH

PRESSURE	:	MAX - 10 BAR

MOC	:	SS 304 / SS 316 / SS 316 L / POLYPROPYLENE - PP/ PTFE or any other as per required.

MOTOR POWER	:	0.5 HP - 15 HP, RPM : 1450

MOTOR TYPE	:	STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT or any other as per required.

MOTOR POWER	:	SINGLE PHASE / THREE PHASE, 50 HZ / 60 HZ, 230 V / 380 V / 415 V or any other as per required.

APPLICATION	:	DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING
